Matrix LED Clock
At the beginning of the course several projects were proposed to us during the course, I chose a digital clock with LED matrix's, The model that I noticed for my design was this:
I did a first design that was refined and corrected with the help of the teacher. The whole process was done in altium realizing a realistic engineering project,in it are all versions and engineering notes.
It is a digital clock made with matrix of LEDs that will allow us to show the time or messages previously loaded in a showy and striking manner, making both a decoration function and a functional clock.

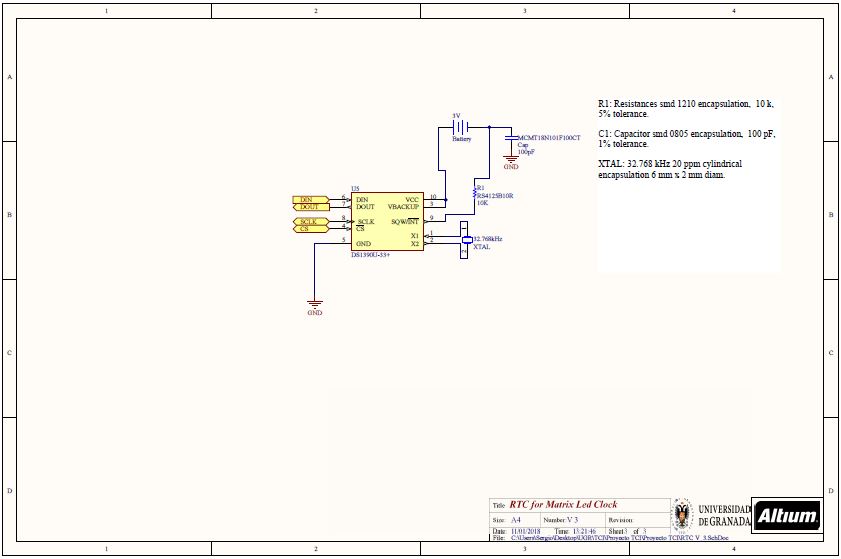

Here I show the final schematics of the project and the download link of the complete project
Download the project here.
