Alejandro Puche Rodriguez, Telecomunications Engineering Student

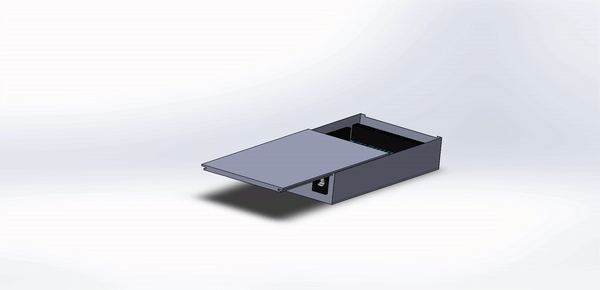

Basic knowledge in SolidWorks - Case for Arduino Mega 2560
Here, We have done a proyect in which we have made a case for the Arduino Mega 2560.
Our goal is to achieve a case or box that must save the microcontoller. Besides, the conections could be reached from outside
The microcontroller is totally protected by this case.

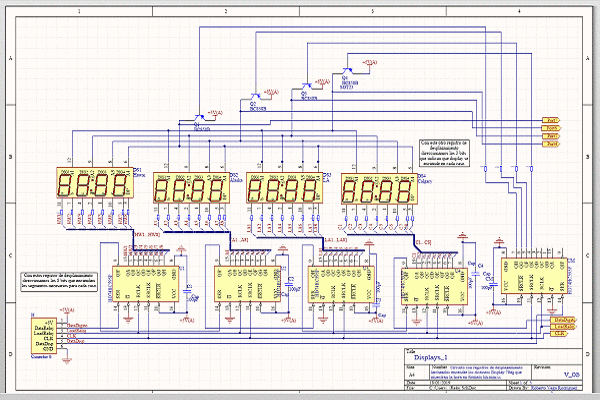

World Clock - Altium
Also, We have a basic knowledge about Altium Desginer.
Our proyect is based in a World Clock, that means we use a World Map where we use enough displays to provide the hour for many places.
This proyect was done by my partner Roberto Vega Rodriguez and me.

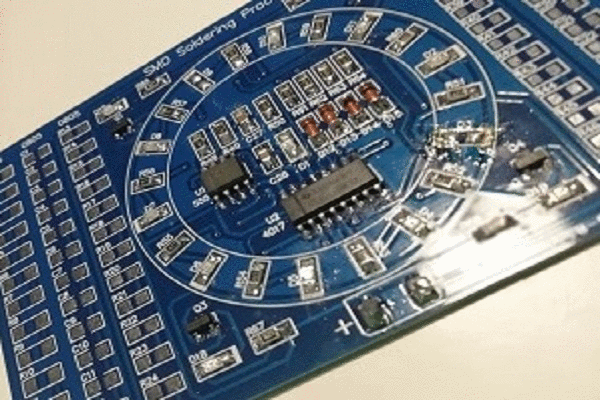

Welding learning with tin
This is a initiation in welding, where we have learned how to weld in SMD board with SMD components.
Teacher: Andres Roldan Aranda
Electronics and Computer Technology Department
Campus Fuentenueva (Science University)[University of Granada]
E-18071 GRANADA (Spain)
