I am Antonio Castillo Rodríguez and I am an engineering student of Telecommunications Technology at the University of Granada. In this web I show what I have done in the subject of Printed Circuit Technology taught by Professor Andrés Roldán Aranda.
-
-
Geometric pieces in SolidWorks

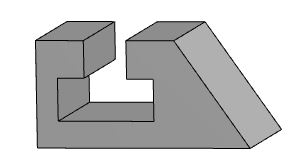

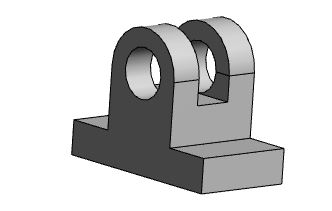

Basic design in Solidworks
SolidWorks is a CAD software for mechanical modeling in 2D and 3D, currently developed by SolidWorks Corp. During this course I have acquired basic design notions in this software.
-
PCB Analysis

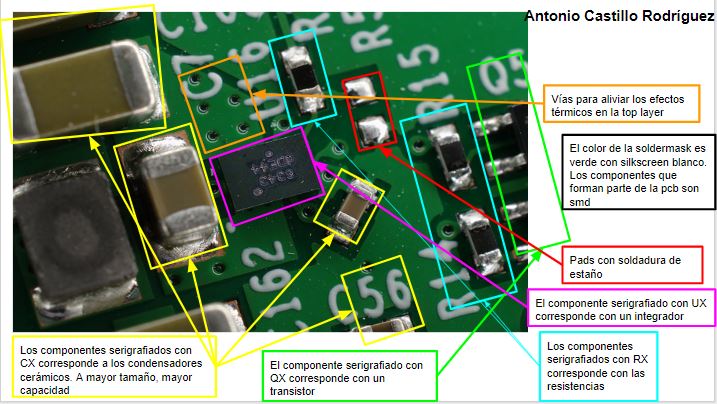

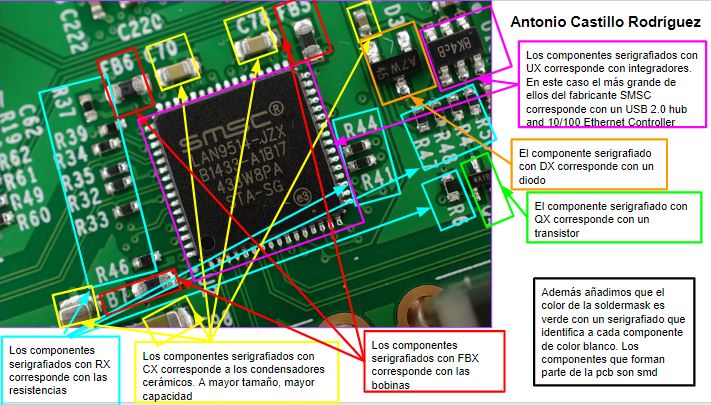

In this subject I have learned to analyze the SMD components that are part of a PCB, as well as the state in which they are located.
-
Design in altium of an old electronic load.

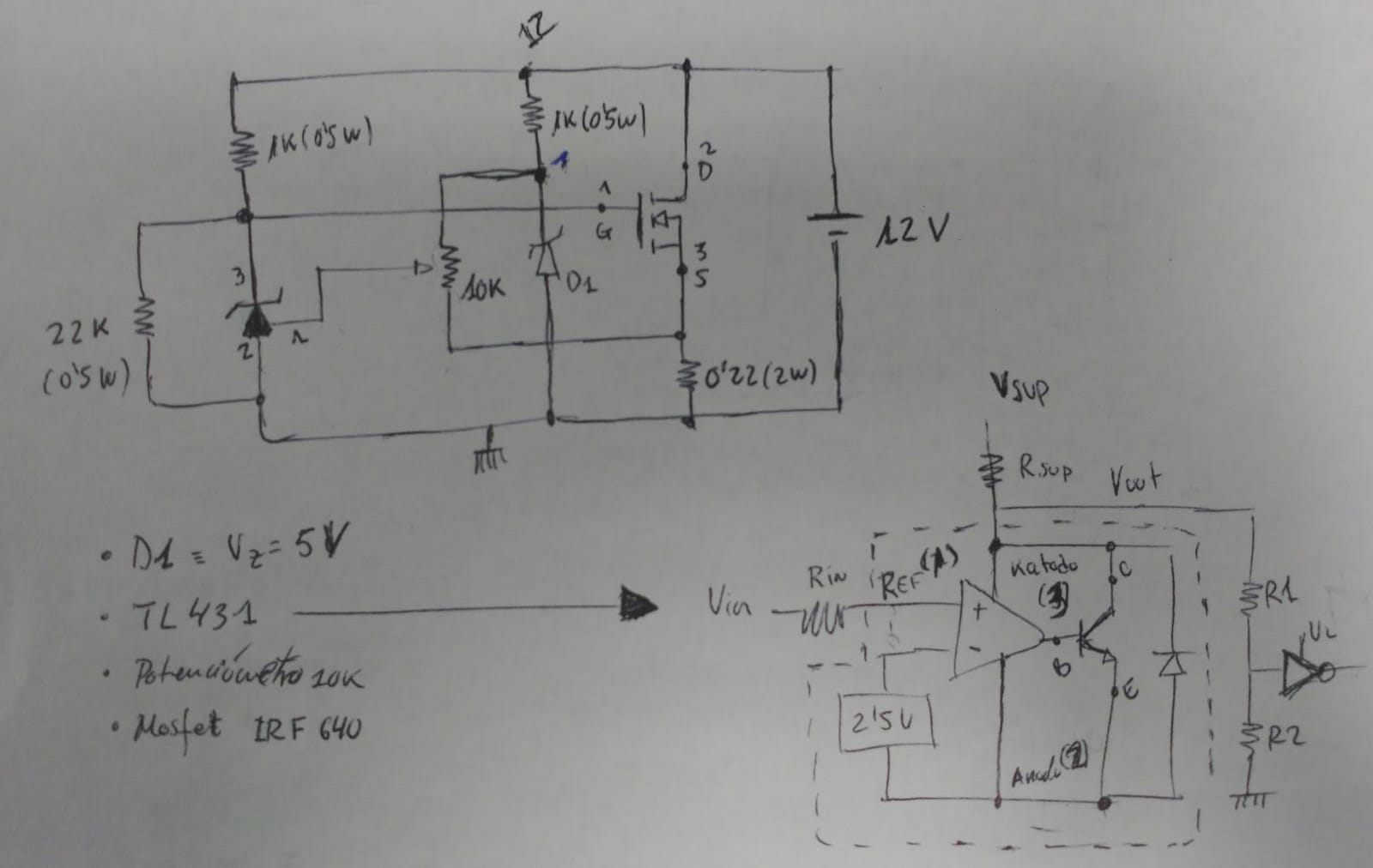

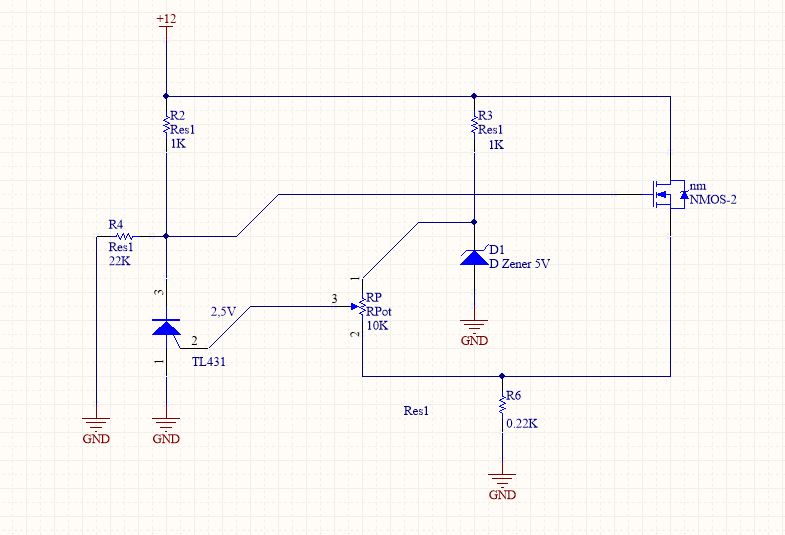

My partner Javier Guzmán and I made this design of an electronic load through a programmable diode TL431, a potentiometer of 10KOhms and a mosfet transistor IRF 640. We must add that this design is outdated today. In the image on the left, the design is shown in Altium and in the image on the right is the design on paper..
-
Welding skill

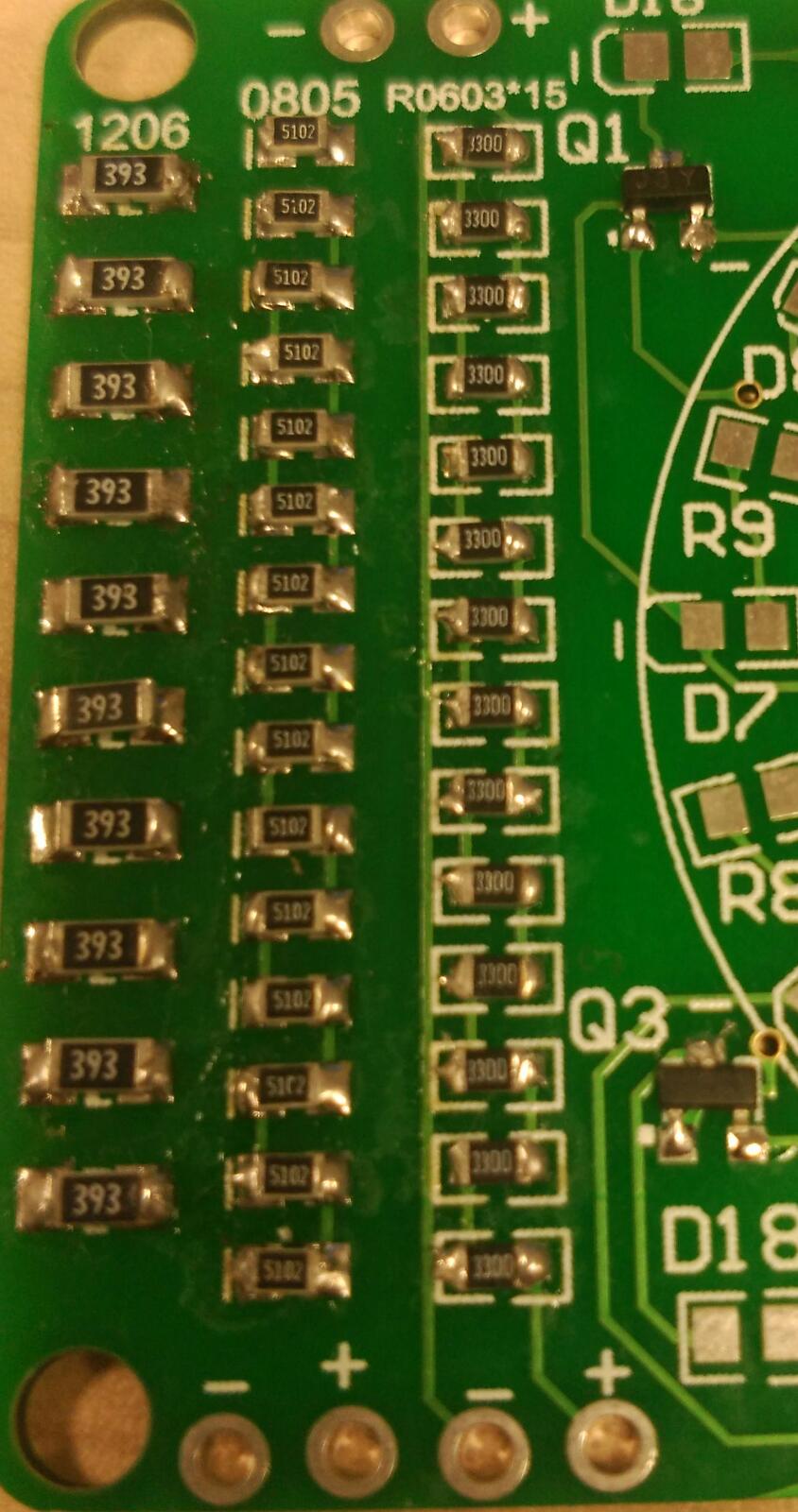

I have learned for the first time to manually solder SMD components on a PCB. There is still much to improve ...
-
