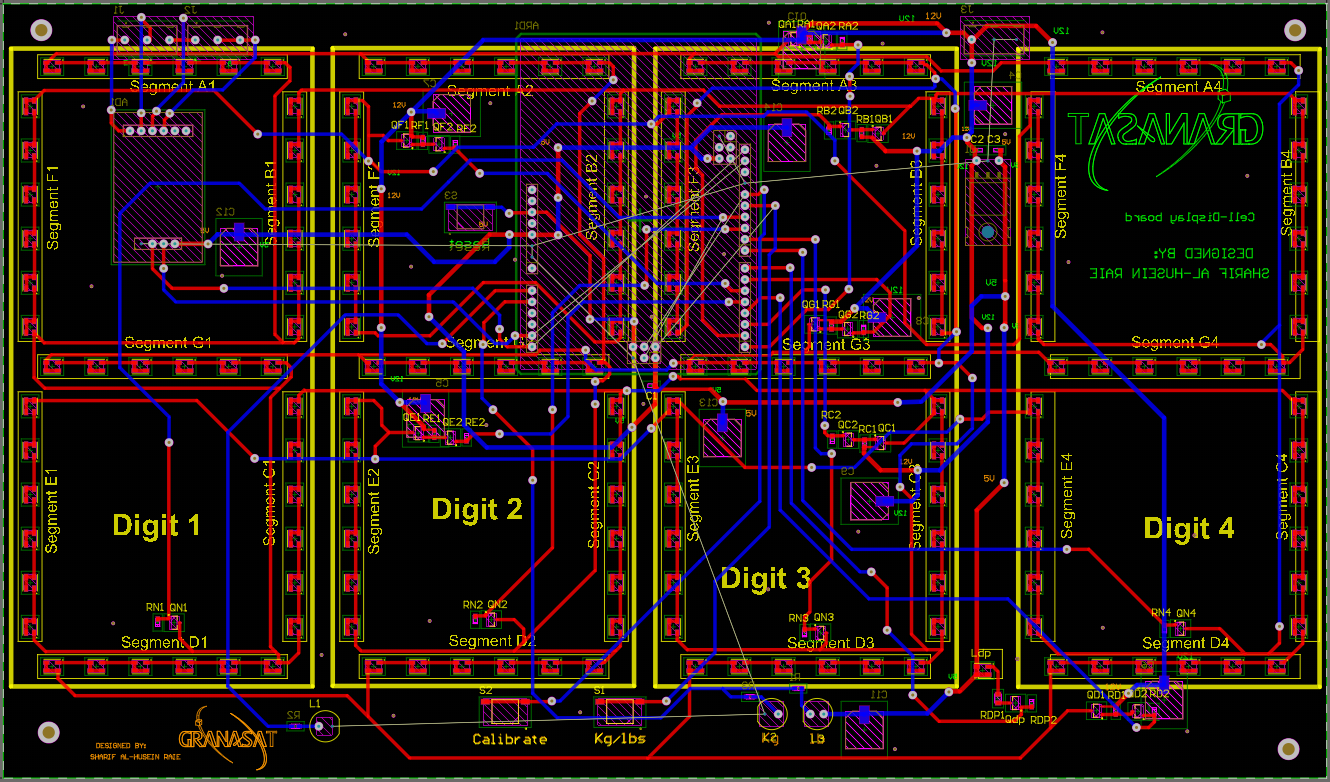

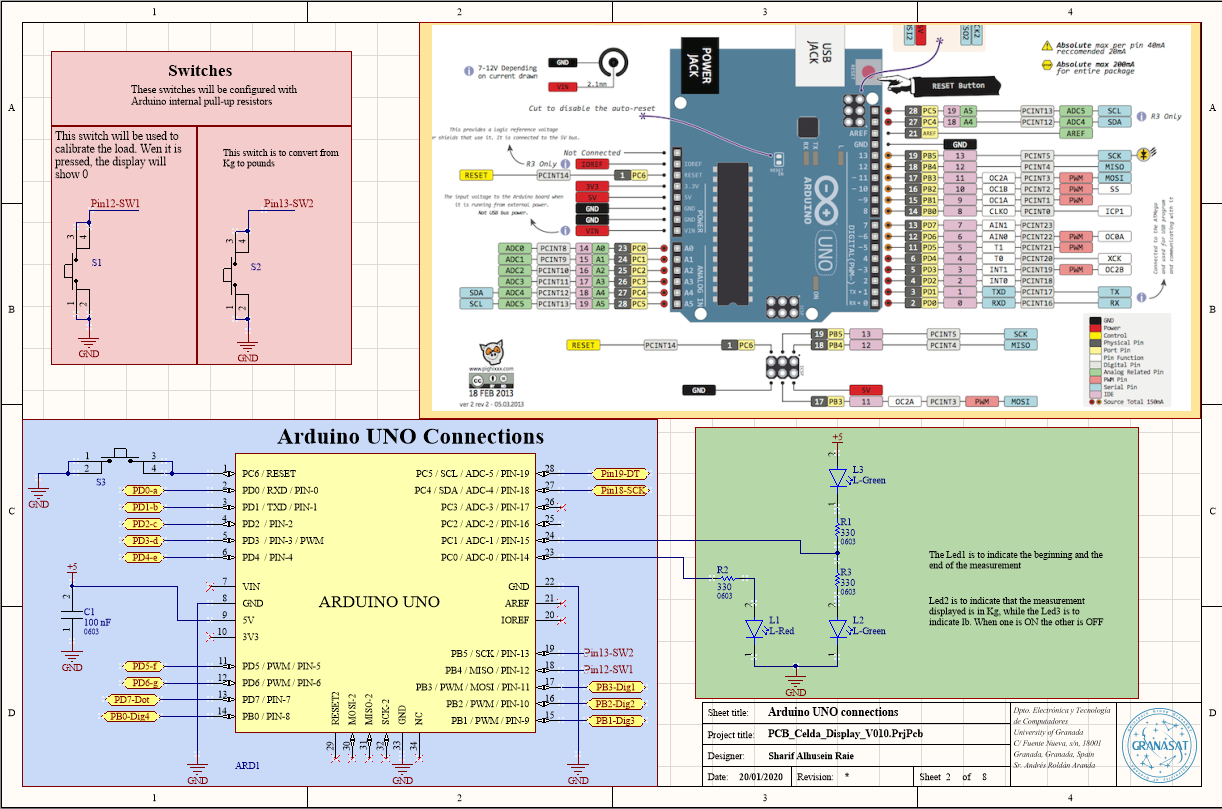

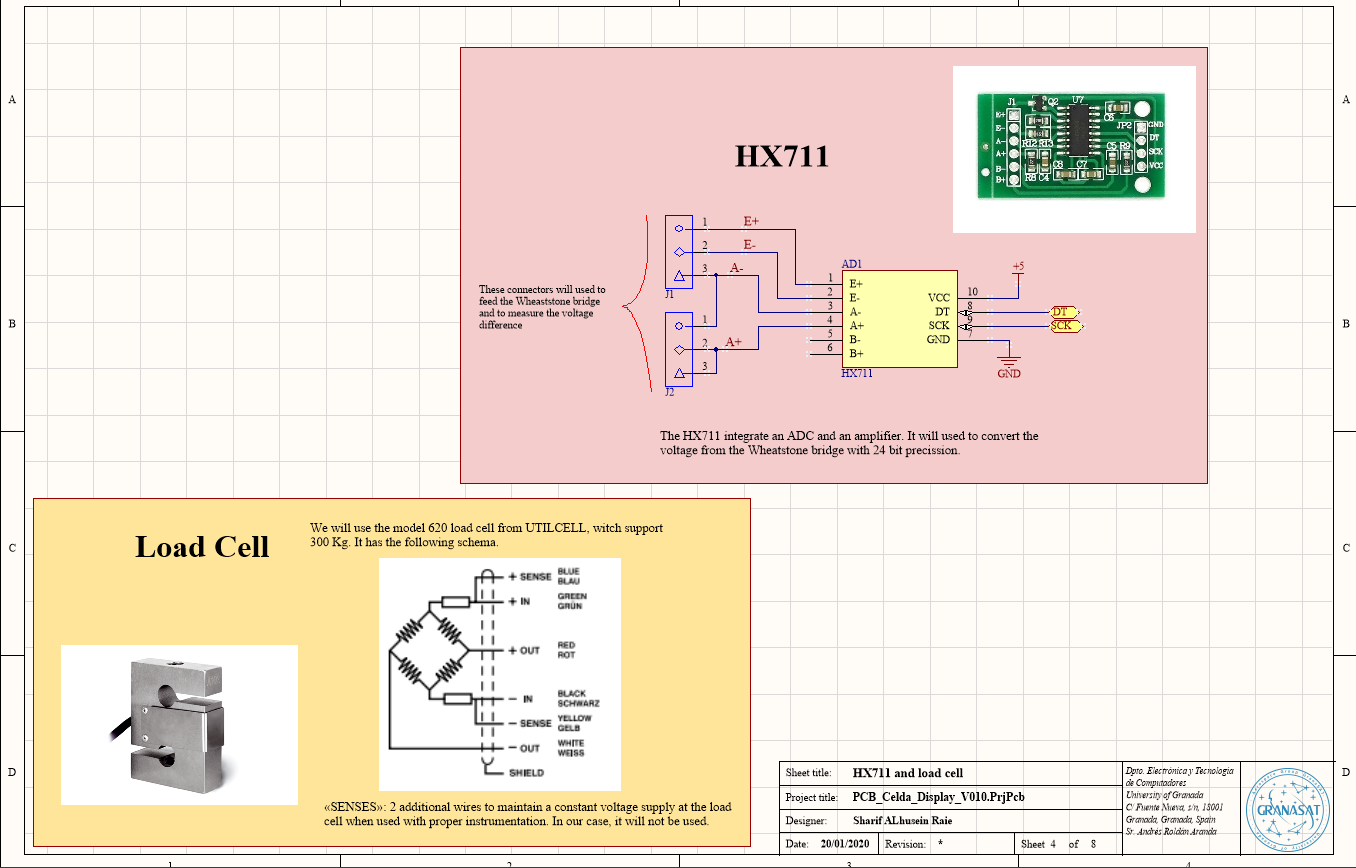

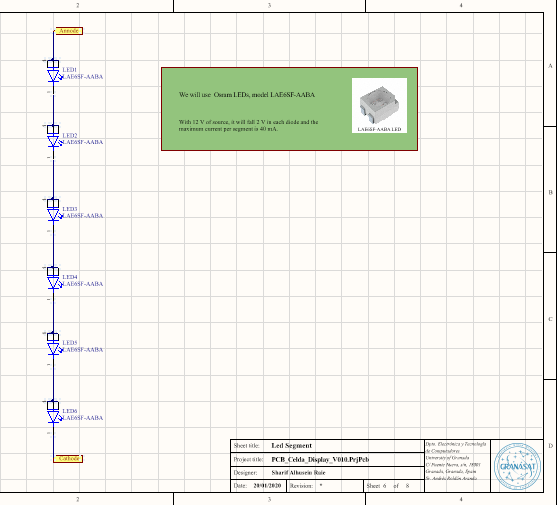

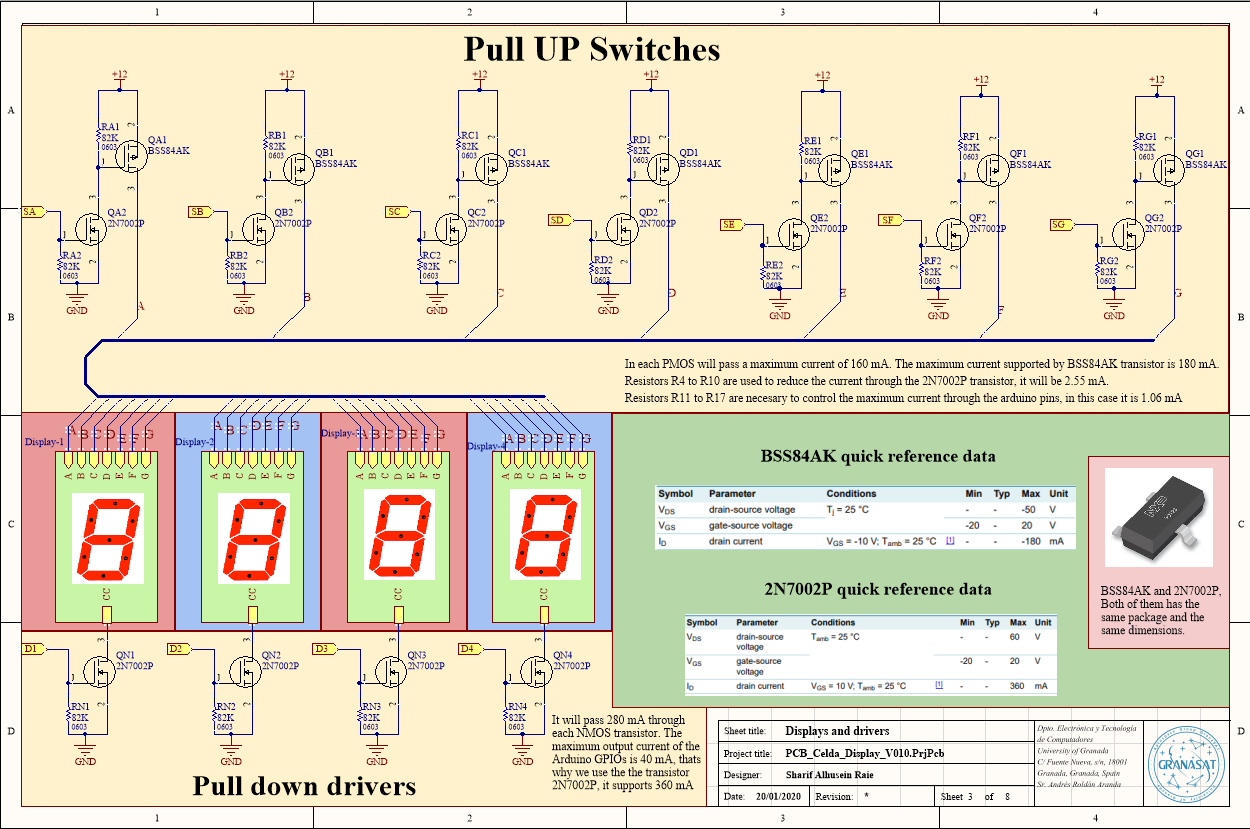

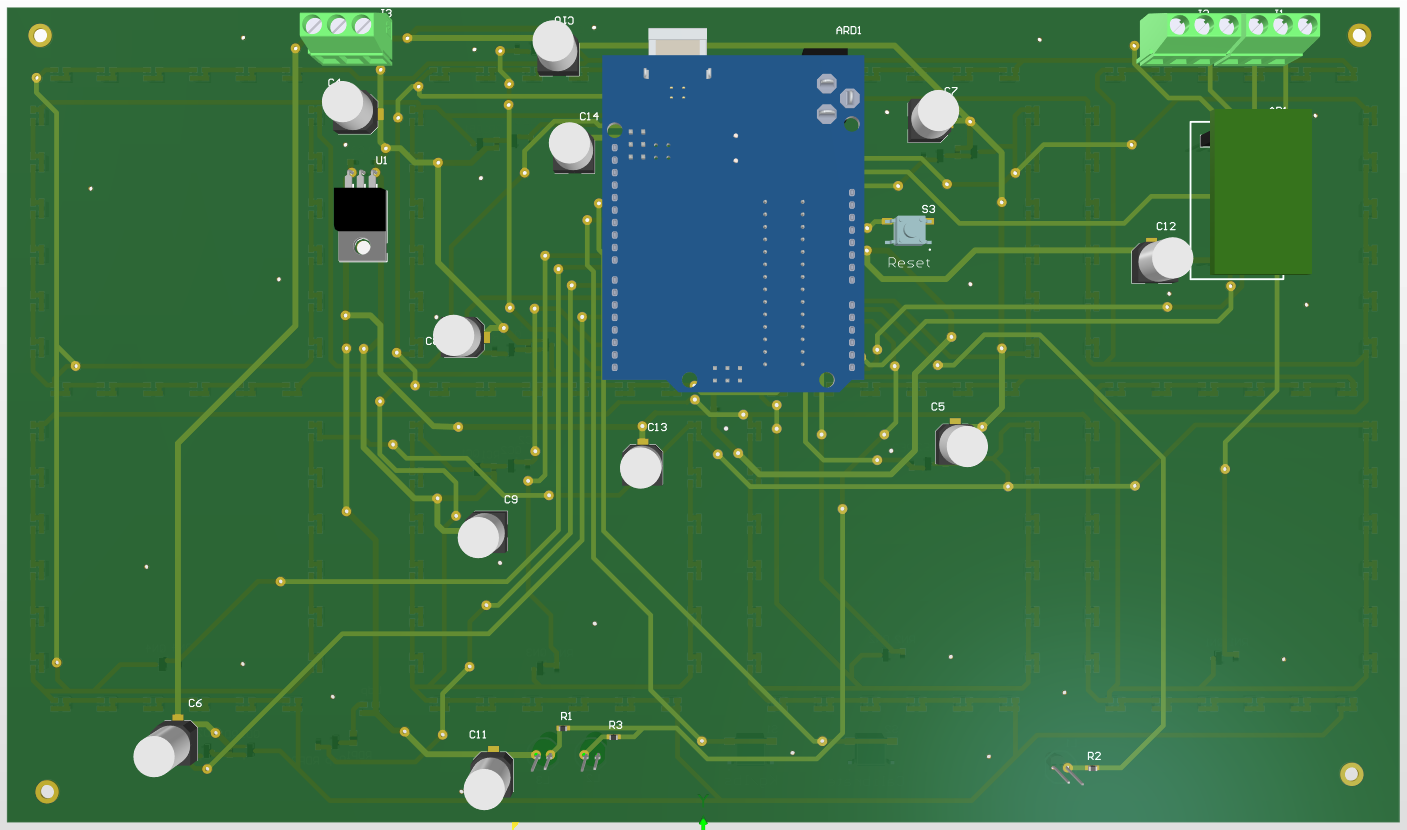

This project consist of designing a PCB for a scale with a 7 segment display and 4 digits, made with SMD LEDs. I will use an Arduino UNO to control the disply and to read from the sensor (a load cell). For visualice the 4 digits at the same time we have to multiplex them.
